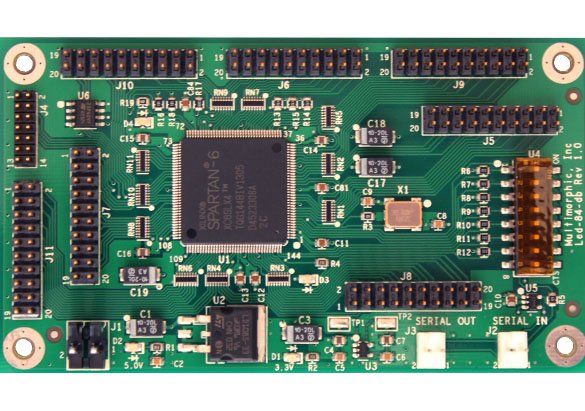

Multimorphic PD-LED V3 LED and Motor Driver Board
    Multimorphic PD-LED V3 LED and Motor Driver Board
    Purchase Multimorphic PD-LED V3 LED and Motor Driver Board
    • Product ID: PD-LED-2
      Multimorphic PD-LED V3 LED and Motor Driver Board

    • $79.95

      In Stock

      Quantity in Basket:  None
      Location: K5

    •



    LED Control: The PD-LED can drive up to 2048 single-color LEDs or 682 RGB LEDs. Because the board has 84 individual drive pins, up to 84 of the 2048 individual LEDs (or 28 of the 682 RGB LEDs) can be driven in parallel. The rest can be driven through up to 6 serial control channels.

    Motor Control: The PD-LED can also control up to 12 servo motors and up to 2 stepper motors. Servo control is better than 1-degree resolution. Servos need to be powered externally, but the control line connects directly to the PD-LED. Stepper motor control works in conjunction with a pulse stepper controller, like a StepStick or EasyDriver. The PD-LED sends the desired direction and number of pulses.

    The PD-LED can be driven directly by a P3-ROC, indirectly through a P-ROC with a PD-Master, or indirectly (through a high-speed RS-485 master device) by various other microcontroller-type devices.

    Each PD-LED has an RS-485 serial interface so that it can chain to other driver boards. Therefore, you can use as many boards as your application requires. Further, since the serial interface will continue to work at distances well over 10 feet (100 feet even), you can locate the boards in the backbox, under the playfield, or anywhere else in your machine.

    The PD-LED responds to the following commands:

    Set Color (8-bits per LED, 24-bits per RGB LED) – The PD-LED automatically drives a pulse-width-modulated (PWM) signal to achieve the desired color

    Set Fade Rate

    Fade – The PD-LED automatically adjusts the PWM signal over the specified rate to fade from the previously set color to a new one.

    Note 1 – the PD-LED does not have LEDs on the board itself (except for a few status LEDs). Rather, it provides connectors for driving external LEDs. Because each application has its own needs and constraints, it’s likely each design has different LED configurations. Driving just about any configuration of LEDs is possible with one or more PD-LED boards.

    Note 2 – the PD-LED is not intended to drive standard pinball-bulb-style LEDs. Rather, it provides low current (22mA) drivers for directly driving LED components, including any of the RGB LED products offered by Multimorphic.

    Note 3 – Motor control functionality for servos and stepper motors is only available in version 3 boards. Version 3 boards are fully backwards compatible with version 2 boards.

    Note 4 – version 2 boards are almost identical to version 1 boards. The only difference is the communication bus connectors (J2 and J3) are now 3 pins (with an optional ground pin) instead of 2. If you need version 1 boards, please email us to request quotes and lead-times.
