NOTE: This kit REQUIRES a Guns N' Roses Tibetan Breeze flipper coil cooling kit already be installed (see link below).
Diverter and Magnet fan kit for Guns N' Roses LE/CE machines. A similar system to the Tibetan Breeze flipper cooling kits. You will be able to cool the coil that runs the magnet effectively. The magnet never comes close to 170F thermal cutoff where the thermal switch would cut power. The hottest recorded on a very active game with magnets firing frequently is 128F, which is acceptable. Usually it is in the 90-110F range. These temperatures will be higher or lower depending on the ambient temperature where the machine is, but with the cooling the magnet should never again be hot enough.
The other issue that is also coil-related is the diverter for the left ramp. This is a more serious issue because it doesn’t have a locking coil so for large sections of the game, the coil is engaged to hold it down. It also doesn’t have a thermal switch on it, which means the coil can get much hotter than the magnet coil and have malfunctions or worse, start smoking the fire-resistant coil wrapper.
Needless to say, adding the cooling system to the bracket for the diverter coil eliminates heat issues with it, ensuring it works properly for as long as you play.
To add these to your Guns n Roses, you must already have a Tibetan Breeze kit installed because it uses the power adapter supplied with that kit. This kit also debuts the karma glide mounting system, which insulates the fan within the bracket to minimize noise. I think you will be pleased with the contribution it makes.

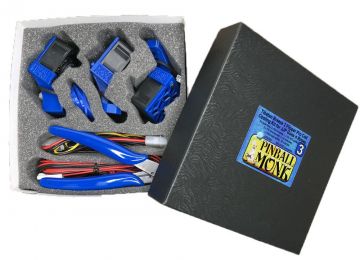

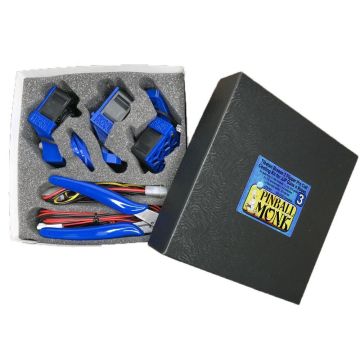

The kit includes:
2 x Brackets, suitably marked
2 x Fans with Karma Glide mounting
1 x 7.5’ Y adapter extension cable
1 x Quik-loc splitter
2 x longer hex cap screws for diverter
1 x Ball end hex wrench (for diverter install)
8 x zip ties
Detailed install instructions
Estimated installation time: About 20 minutes. Slower with cake.
