Product ID: WMS-DE-Sega-BRDG-CAPS-LED

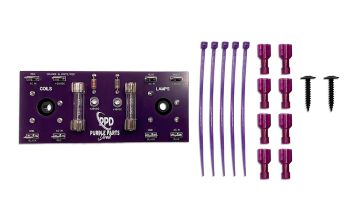

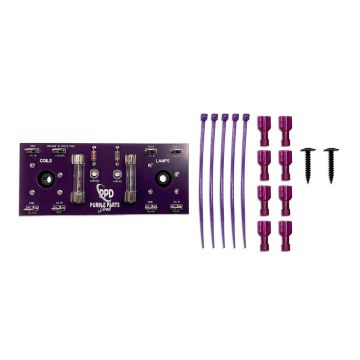

Williams/Data East/Sega Fused Bridge Rectifier & Capacitor Board With Indicator LEDs

Upgraded bridge rectifier & capacitor board for Data East/Sega Version 1, 2, 3 & 3B pinball machines, and Williams System 3, 4, 6, 6A, 7, 9, 11 & 11A pinball machines (see machine compatibility lists below).  This board includes handy indicator LEDs, showing the board's status at all times.

This new safety & performance upgraded bridge rectifier & capacitor board corrects the original design flaw in this era of pinball machines' electrical systems & replaces bridge rectifiers 6BR1, 6BR2 & capacitor 6C1 with a single board.

For improved safety, this board also adds 2 fuses in the 18 volt controlled lamp circuit & 34 volt solenoid circuit to prevent possible fire hazards if the bridge rectifiers should fail, which is known to have been a common failure point in the past.

Williams/Midway #5040-09051-00 & #5100-09418-00.

WMS System 3
Contact
Disco Fever
Hot Tip
Lucky 7
Would Cup

WMS System 4
Flash
Phoenix
Pokerino
Stellar Wars

WMS System 6
Blackout
Firepower
Gorgar
Laser Ball
Scorpion
Time Warp
Tri Zone

WMS System 6A
Algar
Alien Poker

WMS System 7
Barracora
Black Knight
Black Knight Limited Edition
Cosmic Gunfight
Defender
Firepower II
Joust
Jungle Lord
Laser Cue
Pharaoh
Solar Fire
Star Light
Time Fantasy
Varkon
Warlok

WMS System 9
Comet
Sorcerer
Space Shuttle

WMS System 11
Grand Lizard
High Speed
Road Kings

WMS System 11A
F-14 Tomcat
Fire!
Fire! Champagne Edition
Millionaire
Pinbot

Data East Version 1
Laser War

Data East Version 2
Monday Night Football
Phantom of the Opera
Playboy 35gh Anniversary
Robocop
Secret Service
Time Machine
Torpedo Alley

Data East Version 3
Rocky and Bullwinkle
Back to the Future
Batman
Checkpoint
Guns N' Roses
Hook
Jurassic Park
Last Action Hero
Lethal Weapon 3
Star Trek
Star Wars
Tales from the Crypt
Teenage Mutant Ninja Turtles
The Simpsons
Tommy
WWF Royal Rumble

Data East/Sega Version 3B
Batman Forever
Baywatch
Mary Shelley's Frankenstein
Maverick
