.156" (3.96mm) IDC 13-Position Connector For 22 Gauge Wire
    .156" (3.96mm) IDC 13-Position Connector For 22 Gauge Wire
    Purchase .156" (3.96mm) IDC 13-Position Connector For 22 Gauge Wire
    • Product ID: PBL-600-0467-00
      .156" (3.96mm) IDC 13-Position Connector For 22 Gauge Wire

    • $2.50

      In Stock

      Quantity in Basket:  None
      Location: J6

    •

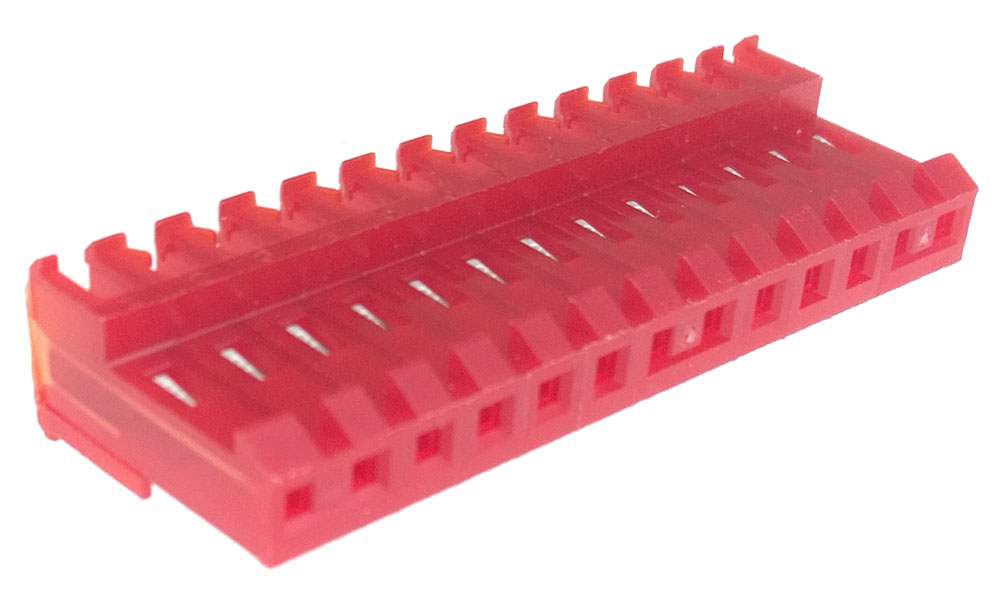

    0.156" (3.96mm) 13-pin insulation displacement connector (IDC) for 22 gauge wire as used in many makes of pinball machines including Williams, Bally, Stern, Data East, Sega, and more.
    Know your wire gauge before ordering.
    Pinball uses mostly two gauges of wire.  Most wires are 22 AWG (thinner). GI, solenoid, and high current wiring is usually 18 AWG (thicker).
    There are exceptions to this rule.
    The easiest way to tell is to compare the thickness of the wires in your backbox to each other.
    Hand tool in link below is recommended for punching wires into this connector.
    Reference #CE156F22-13 & CT156F22-13.
    Williams/Bally #5792-10817-13 & 5792-10847-13.
