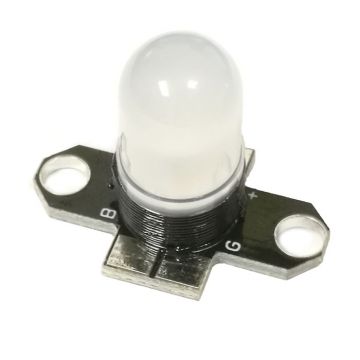

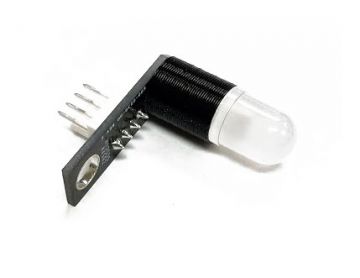

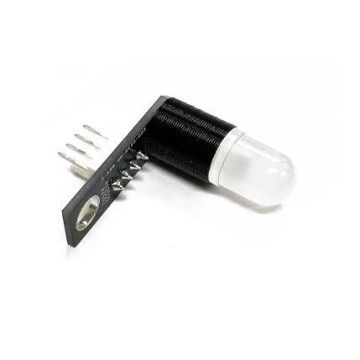

This RGB LED is for direct drive P3-ROC pinball machine inserts. It can also be used in P-ROC custom/home brew machines using PD-LED driver boards.

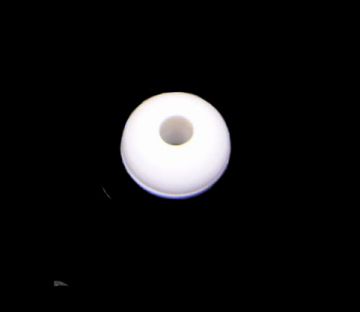

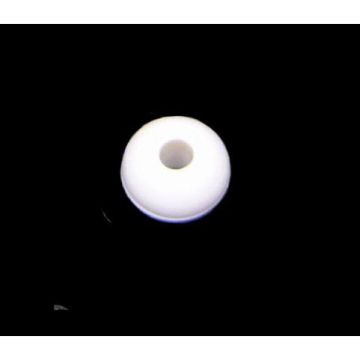

It is recommended to shock mount these LEDs by using a 3/8" OD mini post rubber (part #PBL-0045-00-40) between the board and the playfield.

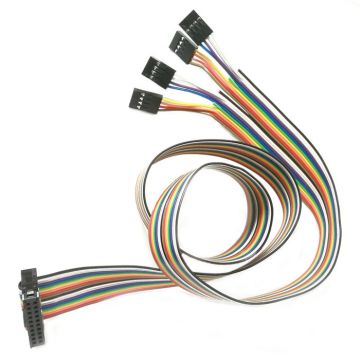

Uses the P-ROC PD-LED direct RGB wirings harness (see related product link at the bottom of this page).
If you have any questions about this LED, email Scott at [email protected].
LED Specifications:
LEDs are common anode
Pinout for the 4 pin connector on these LEDs is +VDC, Red GND, Green GND, Blue GND
Forward voltage is 2.4-3.3vdc
Max Current is 20ma per channel
Game List:
Total Nuclear Annihilation (Spooky Pinball)
It is recommended to shock mount these LEDs by using a 3/8" OD mini post rubber (part #PBL-0045-00-40) between the board and the playfield.
Uses the P-ROC PD-LED direct RGB wirings harness (see related product link at the bottom of this page).
If you have any questions about this LED, email Scott at [email protected].
LED Specifications:
LEDs are common anode
Pinout for the 4 pin connector on these LEDs is +VDC, Red GND, Green GND, Blue GND
Forward voltage is 2.4-3.3vdc
Max Current is 20ma per channel
Game List:
Total Nuclear Annihilation (Spooky Pinball)
Alice Cooper's Nightmare Castle (Spooky Pinball)
Rick & Morty (Spooky Pinball)
Spooky Pinball #600-0220-01.
